Solutions: Define the Solutions per Channel

Panel Tab Options:

In each panel, tabs are visible at the top of the window to enable the user to move to another panel, to perform specific experiment subtasks.

  1. General: A panel whose primary purpose is to specify the experiment run ID (a description string), select a parent project name, and possibly change data source (database or local disk) or database investigator name.

  2. Lab/Rotor: A panel whose primary purpose is to select the Laboratory, Rotor, and Calibration values for the experiment.

  3. Speeds: A panel whose primary primary purpose is to specify one or more speed steps. For each step, speeds and durations may be given.

  4. Cells: A panel whose primary purpose is to select the centerpieces (or counterbalance) for the cells, along with a quartz/sapphire windows selection.

  5. Solutions: A panel whose primary purpose is to specify the solution to be used in each cell/channel.

  6. Optics: A panel whose primary purpose is to select the optical system used to scan.

  7. Range: A panel whose primary purpose is to select the wavelength ranges and cell radius measured.

  8. Submit: A panel whose primary purpose is save and upload the protocol to the Optima/Instrument and database.

Solutions Panel:

Using this panel, you can specify the solutions used in each channel. Comments can also be included and appended to the solution name. The Solutions Management module help page has detailed explanations of these items.

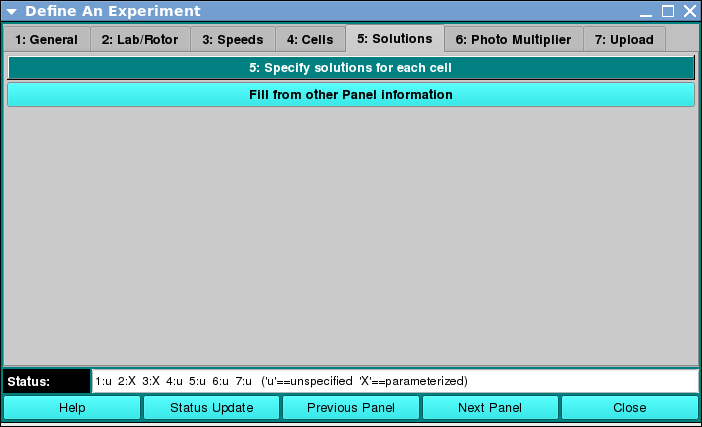

../_images/experiment_solutions.png

Solutions Panel

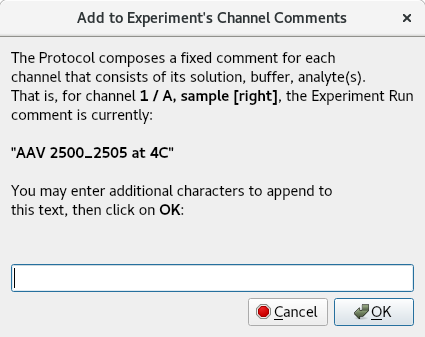

../_images/experiment_solutions_comments.png

Solution Name

Shared Panel Functions:

A panel status box and multiple buttons are shared by all panels. The General tab help page has detailed explanations of these items.
