Create Global Model

This utility combines selected models into a single global model that can be used in global fits. The most common use of its output is to form an input to the Initialize Genetic Algorithm program in which a global set of buckets may be created for use in a global fit Genetic Algorithm run.

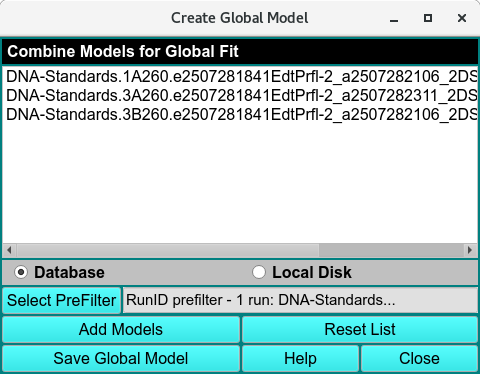

Create Global Model

Window Controls

(models list)	Look here to see the list of component models so far selected.
Database	Select to specify model input from the database.
Local Disk	Select to specify model input from local disk.
Select PreFilter:	Open a Models Pre-Filter dialog to select Run IDs on which to pre-filter lists of models for loading.
Add Models	Open a Model Loader dialog to select model(s) to load into the list of component models to the global model.
Reset List	Clear the list of input models in order to start over in the model selection process.
Save Global Model	Open a dialog (see below) to save the output combined global model.

Window Controls

Help	Display this detailed Create Global Model help.
Close	Close all windows and exit.

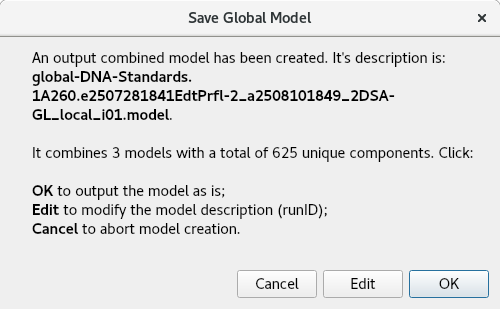

When the Save Global Model button is clicked, a dialog reports on the combined global model to be created and allows the user options in saving it.

Save a Global Model

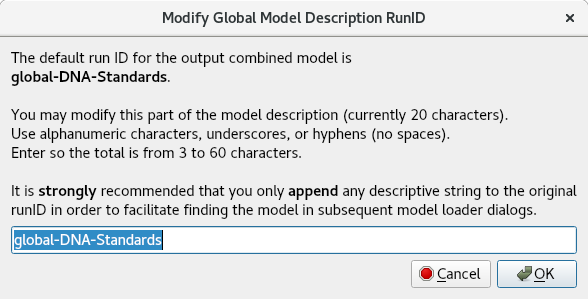

If the user wishes to modify the RunID part of the output model description, a click on the Edit button brings up a dialog for entering new ID text.

Edit Global Model Name
