Multi-Wavelength Raw Data Viewer¶

This module presents options for viewing multi-wavelength data for purposes of quality control. The user may, in this way, identify any problems in the experiment and get a sense of the wavelength, radial, and intensity ranges represented. Two types of input may be loaded for viewing.

Raw MWL: The unprocessed .mwrs files of a run.

US3 MWL: The already imported US3 .auc files for an experiment.

Process:¶

Load MWL Data: Load multi-wavelength data to view by clicking on Load Raw MWL Data or Load US3 MWL Data, depending on the available or desired data type.

Define 2-D Plot and Ranges: Set radius and lambda ranges; determine averaging count; choose the X-axis (radius or lambda); and possibly use the plot window Config option to refine the resulting 2-dimensional plot.

Show a 2-D Movie: Once a 2-D plot and its ranges have been established, show a 2-D movie of all lambda/radius records to view the progression of data through record ranges.

Show and Refine 3-D Plot: Click on Plot 3D to bring up a control window. Within that dialog, choose scales and bring up a 3-D plot window. Continue to refine scales and orientation until the 3-D plot is as desired.

Show a 3-D Movie: Once a 3-D plot, with its scales and orientation, has been established, show a 3-D movie to see the change in data over time (scans). Note that scans may be excluded and a range of scans chosen to refine this movie.

Save Plots and Movies: When plots and movies are all in a desired and informative state, you may save the plots and save frame files from the movies for processing by external imaging software.

The main MWLR_Viewer window is shown here in the state it appears after loading US3 MWL data.

Main Window

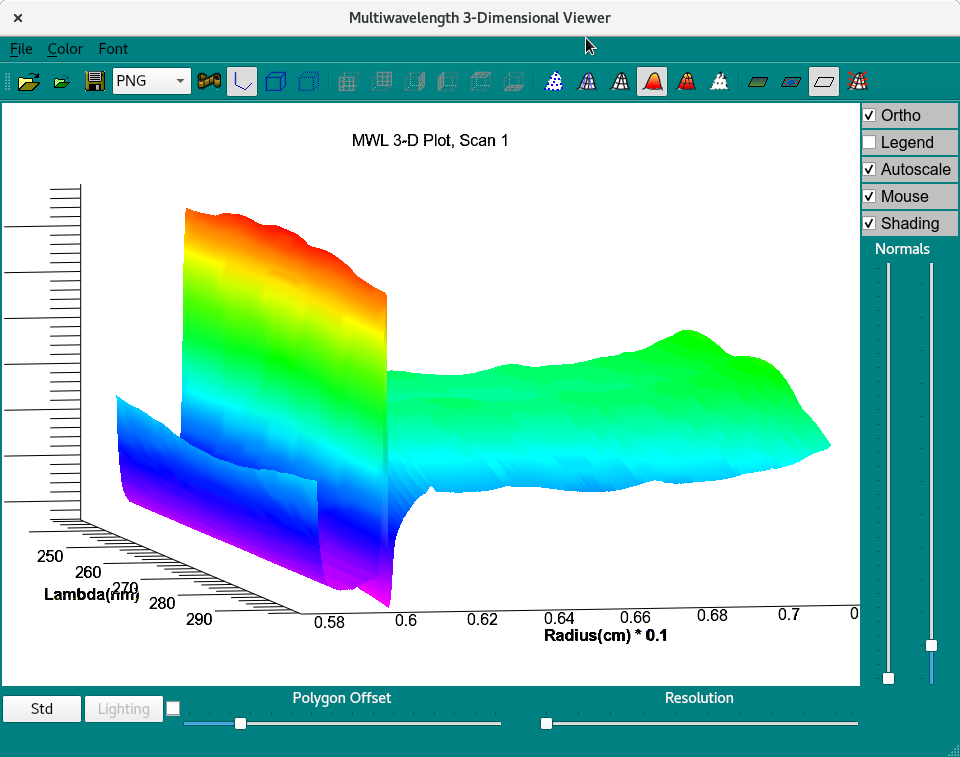

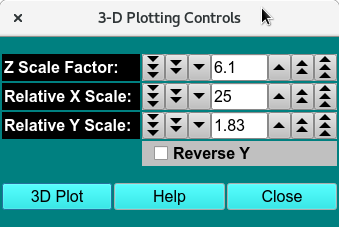

3D-Display Control and 3-D Viewer

Functions:¶

Directory:	A text box to the right of this label shows the full path to currently loaded data.
Run ID:	A text box to the right of this label shows the currently loaded data’s run identifier
Load Raw MWL Data:	Click here and, in the resulting Load Data Dialog, select a run from the imports directory that contains a set of .mwrs files to load.
Load US3 MWL Data:	Click here and, in the resulting Load Data Dialog, select a run from the results directory that contains a set of already imported .auc files to load.
Reset Data	Clear data and plots in preparation for loading a new data set.
Data Details	Click on this button to bring up a text dialog that shows details about the currently loaded data.
Cell / Channel	Select the Cell/Channel of data to view.
Radius Start:	Select the start radius in cm. from the list of available radius values.
Radius End:	Select the end radius in cm. from the list of available radius values.
λ Start:	Select the start lambda in nm. from the list of available wavelength values.
λ End:	Select the end lambda in nm. from the list of available wavelength values.
Record Average:	Select the number of wavelength records over which to compute an average for each record.
X-axis Wavelength	Check this box to change the plot to one in which the X-axis is wavelength and records are radius records.
Plot (W nm) or Plot (R cm)	Select the identifier of the lambda or radius record to plot.
Previous	Click to plot the previous lambda/radius record.
Next	Click to plot the next lambda/radius record.
Refresh 2D Plot	Click this button to replot the 2-D plot after any changes in controls or ranges.
Show 2D Movie	Click here to begin a 2-D movie over the lambda/radius record range.
Plot 3D	Click to open a 3D Plot Control Dialog, from which a 3D Plot Window may be opened or replotted. Note that if a 3D Plot Window is already opened and scan ranges have been changed, this button can be clicked to re-plot the 3D Plot for the new first scan.
Show 3D Movie	Click here to begin a 3-D movie over the scan range.
Save Plot(s)	Click this button to save the current 2-D and/or 3-D plot.
Save Movie(s)	Click here to re-play 2-D and/or 3-D movies and save the PNG files of each frame in the reports directory.
Hold 3D Movie Colors Constant	Check this box before beginning a 3-D movie in order to preserve the correspondence of colors in the currently selected color map to the maximum amplitude range. By default, colors are mapped to each frame’s amplitude range.
From:	Select the first scan of a scan range focus.
To:	Select the last scan of a scan range focus. The from and to values may be used to exclude bad scan curves or to limit the range of a 3-D plot or movie.
Exclude Scan Range	Click on this button to exclude the currently selected range of scans.
Include All Scans	Click this button to revert to the full range of data scans.
Status	The text box below this banner shows the current status of the ongoing or just-completed process.
Help	Click to show this help documentation.
Close	Click to close the MWLR viewer

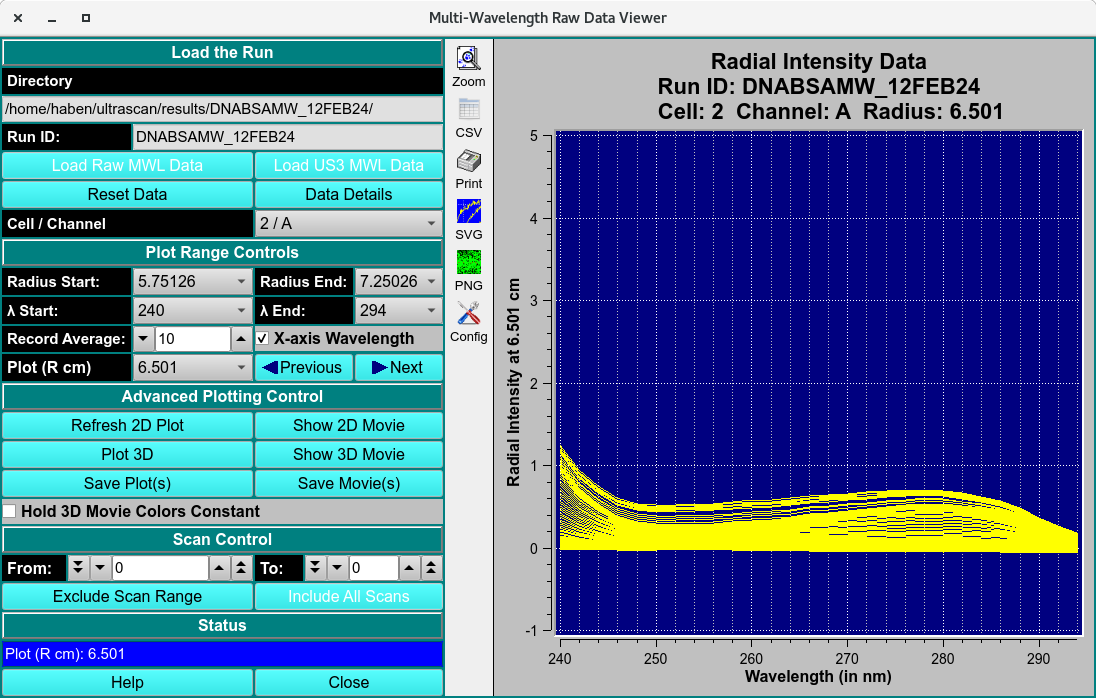

The default 2-D plot and movie frames is of wavelength records with radius as the X axis. You may change to radius records with lambda as the X axis by checking the X-axis Wavelength box. With this checked, the main window would be similar to the following.

Alternate Record and X-axis
