Finite Element (FE) Model Viewer

This module is used to display, and export FE solutions fitted to velocity experiments by various methods. The program can import models from finite element nonlinear fitting sessions, from 2-dimensional spectrum analysis fits, from genetic algorithm fits, and from C(s) fits. The program will then compare the fitted model to the experimental data and display residual plots, sedimentation and diffusion coefficient distributions, as well as molecular weight distributions. The model can be displayed as a 3-dimensional plot showing the partial concentrations mapped onto a 2-dimensional grid of any two of the following parameters: s, D, f, f/f 0 , and MW. Residual plots including deconvoluted time- and radially-invariant noise plots can also be displayed. The results can be saved for inclusion into a velocity result report.

../_images/fe_match.png

Compare Experiment to Finite Element Solution

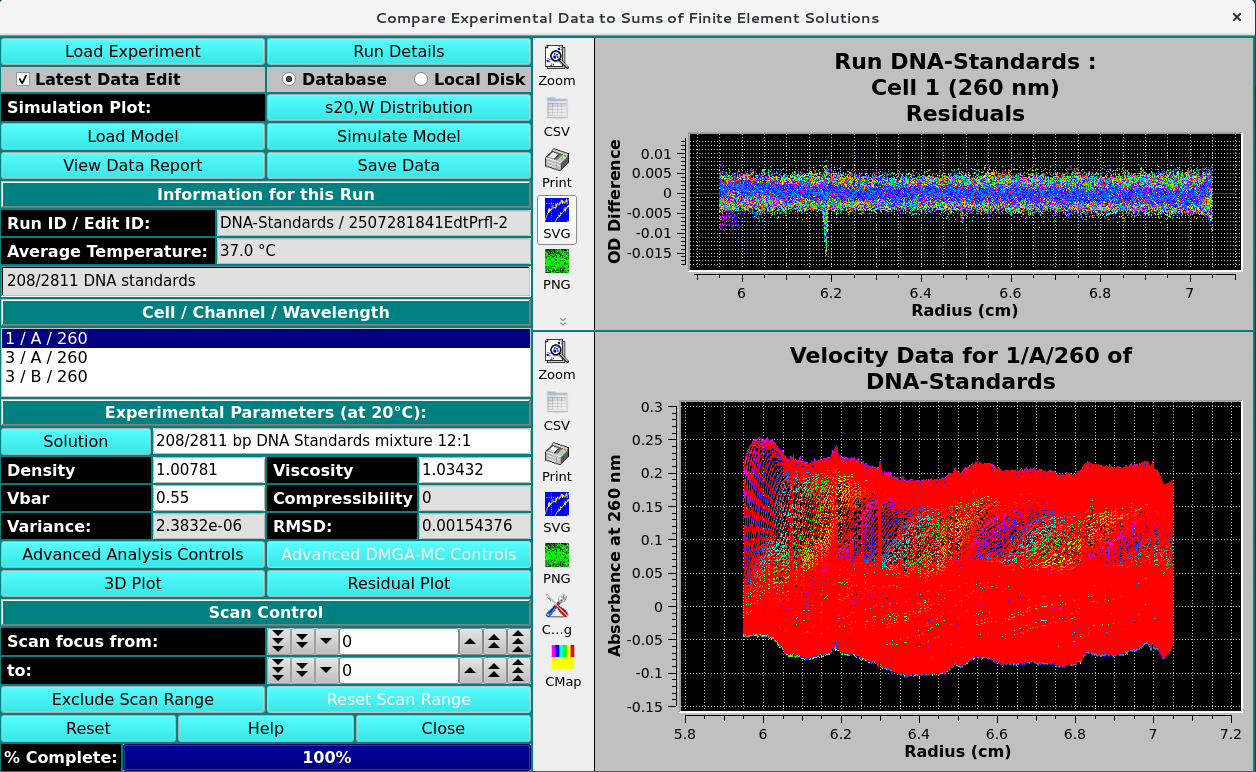

../_images/fe_match_simulated.png

Simulated Finite Element Solution

Functions:

Load Experiment

Click here and, in the resulting Load Data Dialog, select an edited data set to load.

Run Details

Pop up a dialog showing Run details.

Latest Data Edit

Uncheck to allow choosing an edit other than the latest one for the raw experimental data.

Database

Select to specify data input from the database.

Local Disk

Select to specify data input from local disk.

Load Model

Load model data, choosing a model in a Model Loader dialog. If appropriate noise exists, you may also be presented with a Noise Loader dialog to select time-invariant and/or radially-invariant noise vector(s) to load.

Simulate Model

Run a simulation and display results. For details on the results of clicking this button, see Simulate Model Results.

View Data Report

Generate a report file and view it in a dialog.

Save Data

Generate reports and save to file.

Simulation Plot: Bar plot of the selected distributions. The choices are as follows:

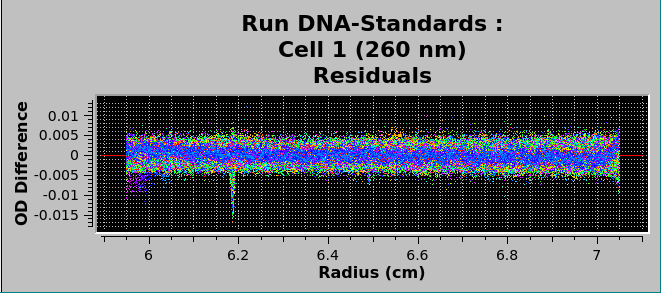

  • Residuals

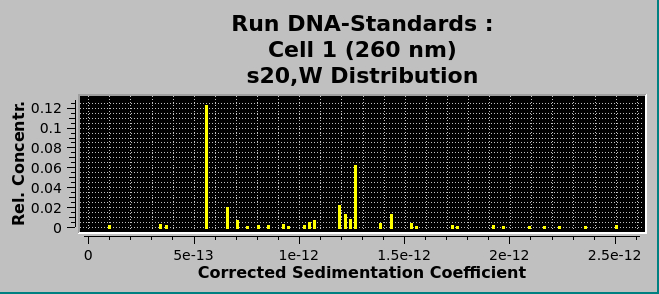

  • s 20,w distribution
../_images/residuals.png
../_images/s20W_bar.png

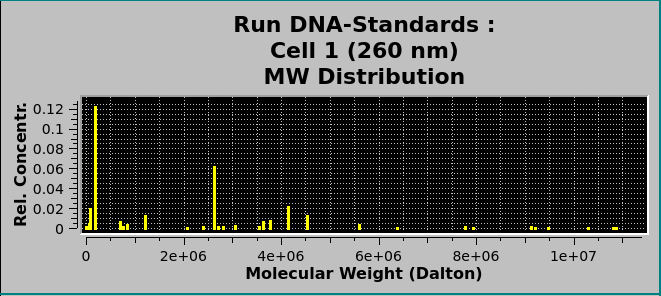

  • MW distribution

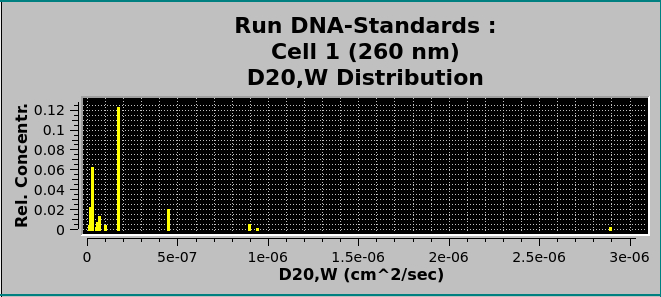

  • D 20,w distribution
../_images/MW-bar.png
../_images/D20W_bar.png

Information for this Run:

Run ID / Edit ID:

The Run identifier string and the Edit identifier (generally a time string) are displayed for loaded edit.

Average Temperature:

The average temperature over all the scans of the loaded data.

(experiment description)

A text string is displayed giving a fairly detailed description of the experiment.

Cell / Channel / Wavelength: One or more rows of data edit triples. If more than one, click on a row to select it as the data of interest.

Experimental Parameters (at 20°C):

Solution

Click this button to open a Solution Management that allows changes to buffer and analyte characteristics of the data set.

Density

Shows the density value for the loaded experiment. Click the Solution button to open a dialog in which density and other values may be changed.

Viscosity

Shows the viscosity value for the loaded experiment. Click the Solution button to open a dialog in which viscosity and other values may be changed.

Vbar

Shows the vbar value for the loaded experiment. Click the Solution button to open a dialog in which vbar and other values may be changed.

Compressibility

Compressibility value for the loaded experiment. The value shown here is set in Solution/Buffer dialogs, but may also be modified in this text box.

Variance:

Variance value (square of RMSD) for residuals.

RMSD:

Root-Mean-Square-of-Differences for residuals.

Advanced Analysis Controls

Click to reveal an Advanced Analysis Controls, with options to set parameters related to Reversible Associations (RA) models or to show details on model components.

3D Plot

Show a dialog of plot controls for a 3-dimensional model plot. See 3-Dimensional Plot Controls Details.

Residual Plot

Show a plot dialog with a more advanced set of data/residuals/noise plots. See Simulate Model Results.

Window Controls

Reset

Indicate that window is reset and the plots are initiated.

Help

Display this detailed van Holde-Weischet Analysis help.

Close

Close all windows and exit.

The main Compare Experiment to Finite Element Solution window may need additional controls when the model loaded includes Reversible Associations (RA). These controls can be revealed using the Advanced Analysis Controls button to invoke a separate dialog.

Noise Vector Selection

When the Noise Dialog Level in the Configuration and Preferences setting is enabled (1), the user can select the noise profiles to simulate the data with.

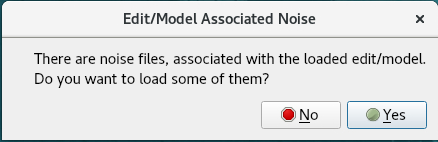

../_images/noise_prompt.png

Noise Vector prompt

No - no noise will be selected, model will be simulated without noise correction,

Yes - User will be prompted to select the noise vector.

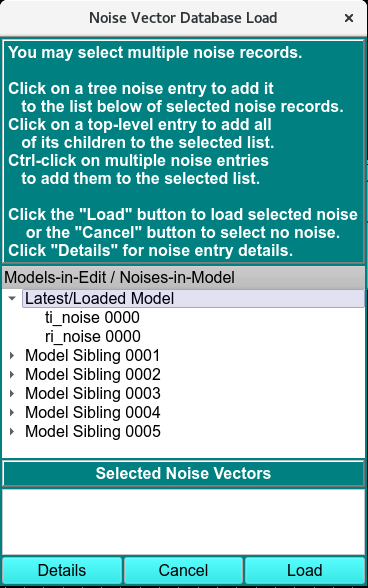

../_images/noise_vec_db.png

Noise Vector Database Load

Note

The Model siblings are in the order of latest noise fitted. The n
